What is meant by bit addressable area in 8051?

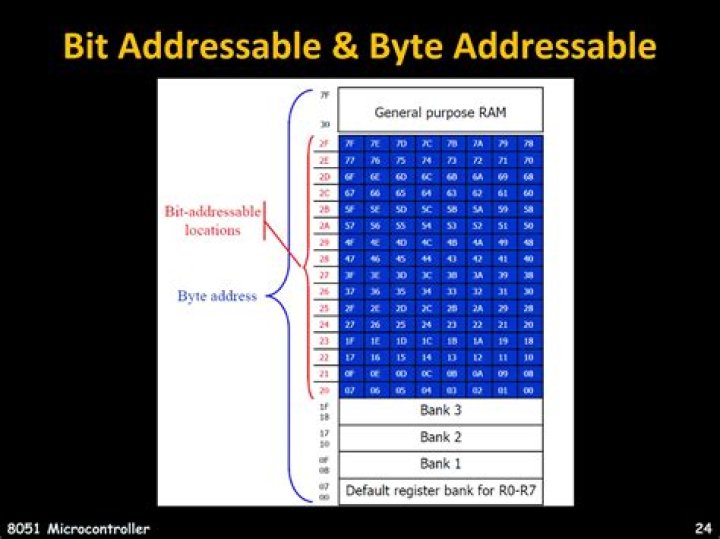

Of the 128-byte internal RAM of the 8051, only 16 bytes are bit-addressable. The bit-addressable RAM locations are 20H to 2FH. These 16 bytes provide 128 bits of RAM bit-addressability since 16×8= 128. They are addressed as 0 to 127 (in decimal) or 00 to 7FH.
How many bits are addressable in microcontroller 8051?
210 bits
The bit addressable memory in 8051 is compose from 210 bits: bit address space: 20H – 2FH bytes RAM = 00H – 7FH bits address, SFR registers.
What is bit addressable and byte addressable 8051?
They are not really using the terms right, byte addressable is what we are used to an address represents a unique byte in memory or the memory space. Bit addressable would mean that each bit in the memory space has a unique address, which is not the case.
What is bit addressable registers in 8051?
The accumulator, B register, Po, P1, P2, P3, IE registers are bit-addressable register remaining all are byte-addressable registers. The accumulator which is also known as ACC or A is a bit as well as a byte-addressable register by an address of the accumulator.
Is TCON bit addressable?
It is not bit addressable.
What are the features of 8051?
Features of 8051 Microcontroller
- 4KB bytes on-chip program memory (ROM)
- 128 bytes on-chip data memory (RAM)
- Four register banks.
- 128 user defined software flags.
- 8-bit bidirectional data bus.
- 16-bit unidirectional address bus.
- 32 general purpose registers each of 8-bit.
- 16 bit Timers (usually 2, but may have more or less)
What is the memory structure of 8051?
The internal data memory of 8051 is divided into two groups. These are a set of eight registers, and a scratch pad memory. These eight registers are R0 to R7. The address range 00H to 07H is used to access the registers, and the rest are scratch pad memory….Data memory structure of 8051 Microcontroller.
| Address Range | Register Bank |
|---|---|
| 18H to 1FH | Register Bank 3 |
What is 8051 microcontroller block diagram?
8051 microcontroller is designed by Intel in 1981. It is an 8-bit microcontroller. It is built with 40 pins DIP (dual inline package), 4kb of ROM storage and 128 bytes of RAM storage, 2 16-bit timers. It consists of are four parallel 8-bit ports, which are programmable as well as addressable as per the requirement.
Which register has SMOD bit?
The SMOD Bit in the PCON Register is used to control the Baud Rate of the Serial Port. There are two general purpose Flag Bits in the PCON Register, which can be used by the programmer during execution.
Which SFR from following is not bit addressable?
Embedded Systems – SFR Registers
| Byte Address | Bit Address | |
|---|---|---|
| 88 | 8F | TCON |
| 87 | Not bit Addressable | PCON |
| 83 | Not bit Addressable | DPH |
| 82 | Not bit Addressable | DPL |
What is the addressable memory of the 8051 microcontroller?
The bit addressable memory in 8051 is compose from 210 bits: bit address space: 20H – 2FH bytes RAM = 00H – 7FH bits address, SFR registers. Write a program to toggle all bits of P1 every 200ms. Here the delay produced is 9*255*4MC*90=199,940 micro seconds. CPL is used to toggle the bits of P1. Short jump is just to produce a continuous loop.
Why does 8051 have 8 bit data bus and 16 bit address bus?
However, the 8-bit address bus can address 256 (2^8) bytes only. Instead of 16-bit, the 8051 could have had 32-bit address bus too in an alternate universe. Data bus The width of the data-bus is “mostly” determined by the CPU’s circuitry.
How does the 8051 compiler use bit addressable variables?
When using the bit addressable variables , the 8051 compiler is supposed to use the setb and clearb instructions to set and clear the variables. Hence the speed of such operations are fast.
What is the addressable memory of 16 bytes?
16 bytes of RAM is allotted as a bit addressable memory. It consists of 16 x 8 = 128 bits. These 128 bits can be individually bit-addressed, starting from 00H to 7FH or can be byte-addressable for 20H to 2FH.
