What does the parallelogram law state?
If two vectors acting simultaneously on a particle are represented in magnitude and direction by the two adjacent sides of a parallelogram drawn from a point, then their resultant is completely represented in magnitude and direction by the diagonal of that parallelogram drawn from that point.
Who prove the parallelogram law for force addition?
Parallelogram law: Stevinus (1548-1620) was the first to demonstrate that forces could be combined by representing them by arrows to some suitable scale, and then forming a parallelogram in which the diagonal represents the sum of the two forces. In fact, all vectors must combine in this manner.
What is the parallelogram law in physics?
: a law in physics: the resultant of two vector quantities represented in magnitude, direction, and sense by two adjacent sides of a parallelogram both of which are directed toward or away from their point of intersection is the diagonal of the parallelogram through that point.
What is the use of parallelogram law of forces?
a rule for adding two vectors, as forces (parallelogram of forces ), by placing the point of application of one at the point of origin of the other and obtaining their sum by constructing the line connecting the two remaining end points, the sum being the diagonal of the parallelogram whose adjacent sides are the two …
What is a parallelogram of forces used for?
The parallelogram of forces is a method for solving (or visualizing) the results of applying two forces to an object.
What are the uses of parallelogram law of forces?
To find the resultant of two forces, you can use the parallelogram of forces law, which says that if you make a parallelogram with the two force vectors as the sides, then the diagonal will be equal to the resultant force.
What is the law of parallelogram of vector addition?
According to the parallelogram law of vector addition if two vectors act along two adjacent sides of a parallelogram(having magnitude equal to the length of the sides) both pointing away from the common vertex, then the resultant is represented by the diagonal of the parallelogram passing through the same common vertex …
Which is the parallelogram?
In Euclidean geometry, a parallelogram is a simple (non-self-intersecting) quadrilateral with two pairs of parallel sides. The opposite or facing sides of a parallelogram are of equal length and the opposite angles of a parallelogram are of equal measure.
How is a force resolved?
In two dimensions, a force can be resolved into two mutually perpendicular components whose vector sum is equal to the given force. The components are often taken to be parallel to the x- and y-axes. Let F be a force, of magnitude F with components X and Y in the directions of the x- and y-axes, respectively.
How is the law of forces represented in a parallelogram?
Parallelogram law of forces. If two forces acting at a point are represented in magnitude and direction by the two adjacent sides of a parallelogram, then their resultant isrepresented in magnitude and direction by the diagonal passing through the point.
How is a vector represented in a parallelogram?
Let they be represented in magnitude and direction by two adjacent sides OP and OS of parallelogram OPQS, drawn from a point O. According to parallelogram law of vectors , their resultant vector will be represented by the diagonal of the parallelogram .
How is the sine law used in parallelograms?
Because parallelograms have opposite sides that are congruent, the result remains the same. Although construction and measurement of the resulting vector provides a close approximation to the resulting forces, mathematically, it is possible to solve for the resultant force using either the sine law or the cosine law from geometry.
What is the side OC of a parallelogram?

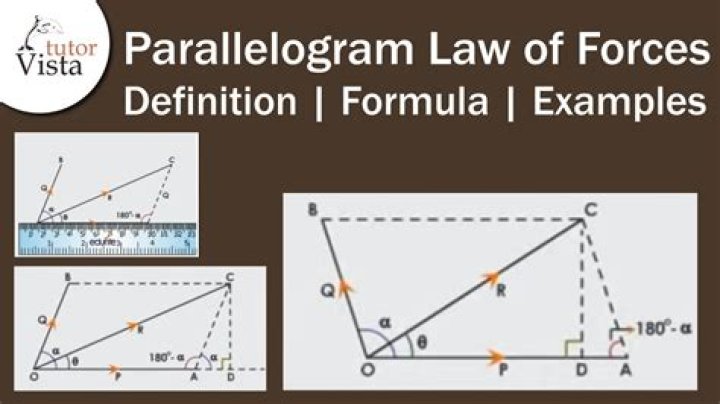

The vector P and vector Q represents the sides, OA and OB, respectively. According to the parallelogram law, the side OC of the parallelogram represents the resultant vector R. The steps for the parallelogram law of addition of vectors are:
