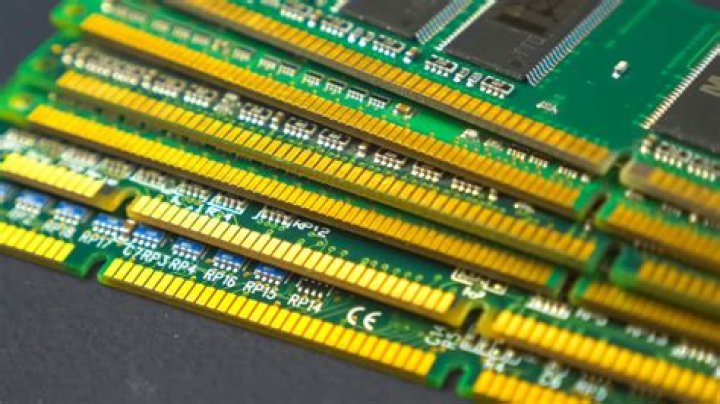

What are the types of RAM modules?

There are two main types of RAM: Dynamic RAM (DRAM) and Static RAM (SRAM). DRAM (pronounced DEE-RAM), is widely used as a computer’s main memory. Each DRAM memory cell is made up of a transistor and a capacitor within an integrated circuit, and a data bit is stored in the capacitor.

What is the most common memory module?

Different Types of Memory Chips: DRAM (Dynamic Random Access Memory) The most common type of computer memory.

Where are memory modules located?

Alternatively referred to as a memory board or memory stick. A memory module is a circuit board with DRAM integrated circuits that are installed into the memory slot on a computer motherboard.

How do I identify my memory modules?

Most memory modules are labeled with a sticker indicating the module’s type, speed rating, and manufacturer. If you are attempting to determine whether existing memory can be used in a new computer, or if you need to replace memory in an existing computer, this information can be essential.

What is the fastest type of RAM?

The latest memory type used in modern desktop computers is called “double data rate.” Not all DDR RAM is equal, and the RAM standard is currently on its third major revision. Those looking to get the fastest-performing RAM purchase DDR3 RAM and a compatible motherboard.

What are the 5 different types of memory modules?

Some standard module types are:

• DRAM chip (Integrated Circuit or IC) Dual in-line Package (DIP/DIL) Zig-zag in-line package (ZIP)
• DRAM (memory) modules. Single In-line Pin Package (SIPP) Single In-line Memory Module (SIMM)
• Stacked vs. non-stacked RAM modules.

  What are the four major categories of memory modules?

  Memory consists of four types of memory chips RAM, ROM, CMOS and flash.

  How do I find my memory speed?

  Use The Task Manager Click Ctrl + Shift + ESC at once on your keyboard. It will open the Task Manager for you. Then, go to the Performance tab and click Memory. That’s where you will find the RAM speed of your PC.

  What does memory type 0 mean?

  The MemoryType field is to tell what type of memory stick is used in the computer, DDR3, or DDR4. But if you see a 0 there, there are chances that it’s a DDR4 RAM, unknown to WMIC command.

  What are the different types of memory modules?

  SIMM modules were widely used from the late 1980s to 1990s, and are now obsolete. They typically had 32-bit data bus and were available in two physical types—30- and 72-pin. Current memory modules come in DIMMs. “Dual in-line” refers to pins on both sides of the modules.

  How are memory module ranks used in DRAM?

  SINGLE RANKED (Rank 1 ) or. DOUBLE RANKED (Rank 2) or. QUAD RANKED (Rank 4 ). 1 RANK = 64bit width (or 72bit with ECC) Single Rank = 64bit. Double Rank = 64bit + 64 bit. Quad Rank = 64bit + 64 bit + 64bit + 64 bit. Ranks are for interleaving to make a system run faster.

  What are the different types of DDR3L memory?

  JEDEC introduced two low-voltage standards. The DDR3L standard is 1.35V and has the label ’’PC3L’’ for its modules. Examples include DDR3L‐800, DDR3L‐1066, DDR3L‐1333, and DDR3L‐1600. The DDR3U standard is 1.25V and has the label ’’PC3U’’ for its modules.

  Can a memory module on a computer be interchangeable?

  But remember, while memory terms may be interchangeable, the memory itself is not. This is because most computers only accept one type of memory. Therefore, if you decide to upgrade you computer’s RAM, make sure the memory modules you buy are compatible with your machine.
