What are the 2 methods of vector addition?
The two methods that will be discussed in this lesson and used throughout the entire unit are: the Pythagorean theorem and trigonometric methods. the head-to-tail method using a scaled vector diagram.

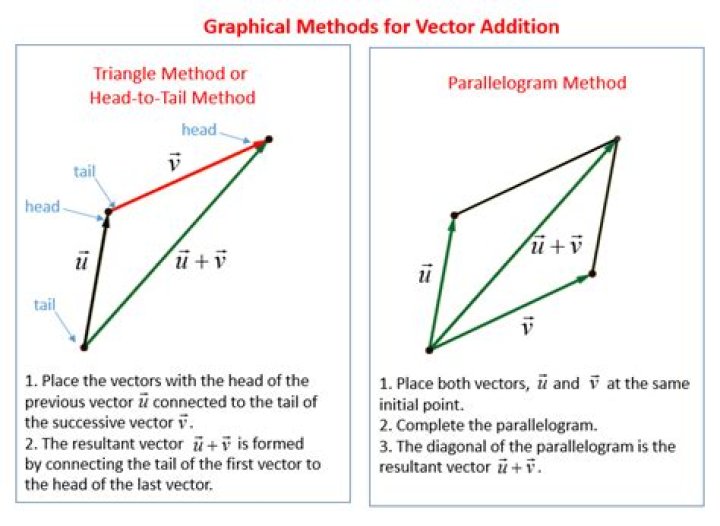

How do you add vectors graphically?
The head-to-tail method of adding vectors involves drawing the first vector on a graph and then placing the tail of each subsequent vector at the head of the previous vector. The resultant vector is then drawn from the tail of the first vector to the head of the final vector.
How do you solve vector additions?
To add vectors, lay the first one on a set of axes with its tail at the origin. Place the next vector with its tail at the previous vector’s head. When there are no more vectors, draw a straight line from the origin to the head of the last vector. This line is the sum of the vectors.
Which method is the most precise graphical or analytical method?
The analytical method is more accurate than the graphical method, because the latter involves some extensive calculations. The analytical method is less accurate than the graphical method, because the former includes drawing all figures to the right scale.
How do you add two vectors analytically?
Adding Vectors Using Analytical Methods
- Identify the x- and y-axes that will be used in the problem.
- Find the components of the resultant along each axis by adding the components of the individual vectors along that axis.
- To get the magnitude R of the resultant, use the Pythagorean theorem:
What is the sum of two vectors called?
The resultant is the vector sum of two or more vectors. When displacement vectors are added, the result is a resultant displacement.
How are vectors subtracted?
To subtract two vectors, you put their feet (or tails, the non-pointy parts) together; then draw the resultant vector, which is the difference of the two vectors, from the head of the vector you’re subtracting to the head of the vector you’re subtracting it from.
What is an example of vector addition?
To add the vectors (x₁,y₁) and (x₂,y₂), we add the corresponding components from each vector: (x₁+x₂,y₁+y₂). Here’s a concrete example: the sum of (2,4) and (1,5) is (2+1,4+5), which is (3,9).
How do you calculate a vector?
To work with a vector, we need to be able to find its magnitude and its direction. We find its magnitude using the Pythagorean Theorem or the distance formula, and we find its direction using the inverse tangent function. Given a position vector →v=⟨a,b⟩,the magnitude is found by |v|=√a2+b2.
How to describe the graphical method of vector addition and subtraction?
Describe the graphical method of vector addition and subtraction Use the graphical method of vector addition and subtraction to solve physics problems Recall that a vector is a quantity that has magnitude and direction. For example, displacement, velocity, acceleration, and force are all vectors.
Is the graphical addition of vectors limited in accuracy?
The graphical addition of vectors is limited in accuracy only by the precision with which the drawings can be made and the precision of the measuring tools. It is valid for any number of vectors. Example 1. Adding Vectors Graphically Using the Head-to-Tail Method: A Woman Takes a Walk
Which is the component method of vector addition?
From the component method of vector addition we know that the sum of these two vectors is u + v = (7, 5).
How to use head to tail for vector addition?
The following steps describe how to use the head-to-tail method for graphical vector addition. Let the x -axis represent the east-west direction. Using a ruler and protractor, draw an arrow to represent the first vector (nine blocks to the east), as shown in Figure 5.3 (a) .
