How is a tree bipartite?
There is a unique path between any 2 vertices in a tree. Every tree with at least 2 vertices has at least 2 vertices of degree 1. Every tree is bipartite. Removing any edge from a tree will separate the tree into 2 connected components.
Why Every tree is a bipartite graph?
Clearly any two distinct vertices from are not adjacent by an edge, and likewise for , because trees have no circuits; moreover, clearly partition the vertex set of the graph into two disjoint subsets. Thus, any tree is bipartite.
Is a tree always a bipartite graph justify your answer?
Actually it’s well known that a graph is bipartite iff it contains no cycles of odd length. A tree contains no cycles at all, hence it’s bipartite.
Is 2d grid graph bipartite?
All grid graphs are bipartite, which is easily verified by the fact that one can color the vertices in a checkerboard fashion.
Is every acyclic undirected graph bipartite?
All Acyclic1 graphs are bipartite.
Is tree a connected graph?
A connected acyclic graph is called a tree. In other words, a connected graph with no cycles is called a tree. The edges of a tree are known as branches. Elements of trees are called their nodes.
Can a wheel graph be bipartite?
Solution: No, it isn’t bipartite. As you walk around the rim, you must assign nodes to the two subsets in an alternating manner. But there is no way to assign the hub node. Alternatively, notice that the graph contains 3-cycles, which can’t occur in bipartite graphs.
Is K3 bipartite?
EXAMPLE 2 K3 is not bipartite. If the graph were bipartite, these two vertices could not be connected by an edge, but in K3 each vertex is connected to every other vertex by an edge.

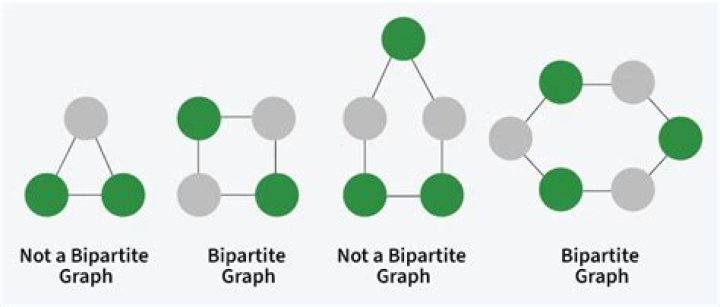

How can you tell if a graph is bipartite?
The graph is a bipartite graph if:
- The vertex set of can be partitioned into two disjoint and independent sets and.
- All the edges from the edge set have one endpoint vertex from the set and another endpoint vertex from the set.
Is a 2 colorable graph bipartite?
Bipartite graphs may be characterized in several different ways: A graph is bipartite if and only if it does not contain an odd cycle. A graph is bipartite if and only if it is 2-colorable, (i.e. its chromatic number is less than or equal to 2).
Can a graph prove that all trees are bipartite?
Actually it’s well known that a graph is bipartite iff it contains no cycles of odd length. A tree contains no cycles at all, hence it’s bipartite. Note that if you already know that every tree has a leaf, then there is a one-line proof.
When is a graph G A bipartite graph?
A graph G with at least two vertices is a tree if and only if there is a unique path join every pair of distinct vertices in G. The existence of the path corresponds to the connected property, and the uniqueness of the path corresponds to the acyclic property of a tree. A tree with one vertex is trivially bipartite.
Why is a bipartite graph called an odd cycle transversal?
Odd cycle transversal. The name odd cycle transversal comes from the fact that a graph is bipartite if and only if it has no odd cycles. Hence, to delete vertices from a graph in order to obtain a bipartite graph, one needs to “hit all odd cycle”, or find a so-called odd cycle transversal set.
Which is the adjacency matrix of a bipartite graph?
For, the adjacency matrix of a directed graph with n vertices can be any (0,1) matrix of size , which can then be reinterpreted as the adjacency matrix of a bipartite graph with n vertices on each side of its bipartition. In this construction, the bipartite graph is the bipartite double cover of the directed graph.
