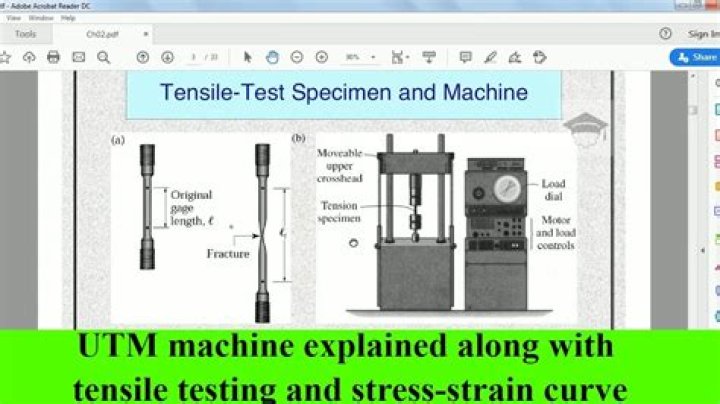

How does UTM machine work give a brief description?
A universal testing machine (UTM), also known as a universal tester, materials testing machine or materials test frame, is used to test the tensile strength and compressive strength of materials. An earlier name for a tensile testing machine is a tensometer.
What are the functions of universal testing machine?
A universal testing machine is used to assess the strength of materials. A universal testing machine offers enhanced control and stability during a materials testing process. A universal testing machine also helps ensure accuracy and repeatability.
What are the components of universal testing machine?
Components of a universal testing machine commonly include a load frame for support, a load cell for force measurement measurement, an upper and lower crosshead to hold the test product, a mechanism for measurement of extension, and a device for reading measurements.
What tests can be performed using the universal testing machine?
The Various Tests a Universal Testing Machine can Perform Universal testing machines allow you to stretch (tensile), bend (flexural), squash (compression) or pull (shear) a sample until it breaks.
Why it is called UTM?
A Universal Testing Machine (UTM) is used to test both the tensile and compressive strength of materials. Universal Testing Machines are named as such because they can perform many different varieties of tests on an equally diverse range of materials, components, and structures.
Why UTM is called universal testing?
How much is a universal testing machine?
Medium force (ranging from 50 kN to 150 kN max force) universal test machines range in price from $25,000 to $48,000. High force (ranging from 300 kN to 2,000 kN max force) universal test machines range in price from $58,000 to $166,000. The higher the max force of the machine of the more metal is required.
What is the least count of UTM machine?
Specifacations:
| MODEL | TFUC-10 | TFUC-400 |
|---|---|---|
| Measuring Cap. (kN) | 100 | 400 |
| Measuring range | 0-100 | 0-400 |
| Least count (kN) | 0.01 | 0.04 |
| Load range in Kn with Accuracy of measurement ± 1% | 2 to 100 | 8 to 400 |
What is the main purpose of UTM?
UTM or Urchin Tracking Module is a simple code that can be attached to any URL to generate Google Analytics data for digital campaigns. Specific to Google Analytics, UTM helps track the progress of the campaign on all online platforms.
What do you mean by universal testing machine?
The behaviour of the material can be tested by different testing methods, with the help of testing machines. The universal testing machine is a material testing machine used for static testing such as a tensile test or compressive test. It is also known as UTM.
How does a universal testing machine measure flexure?
There is nothing supporting the middle portion underneath of it. Then you press down from above directly in the middle of the span of material until the supported material breaks or reaches a specific distance. This test measures how strong the material in flexure (flexural strength) and how stiff it is (flexural modulus).
How does a tensile pull tester work?
The sample is pulled apart from two ends which are fixed to the machine using tensile grips. Tensile testers are also known as pull testers or universal testing machines. These machines play a key role in any material testing laboratory including both quality control and R&D environments.
How is an oil pump used in a universal testing machine?
This unit consists of an oil pump that provides non-pulsating oil flow into the main cylinder of the load unit. This flow helps in the smooth application of load on the specimen. The oil pump in a hydraulic power unit is run by an electric motor and sump. 2.
