Calibration procedure of control valve positioner(heart type)
- Zero adjustments are done at the nozzle.
- Span adjustment is done by moving flapper assembly (follower assembly) along the summing beam.
- Air supply to the positioner is 20 psi.
- To calibrate move the flapper assembly to midrange of direct side or about no.6.
How do you troubleshoot a control valve?
Get the control loop function test performed and get the logic verified. If some malfunction in the control loop or logic, then get it corrected. Check the current operating conditions and try to locate current situation between original design cases.
How do you calibrate a solenoid valve?
A method of calibrating a solenoid operated pressure control valve by sweeping the solenoid with increasing current from a minimum to a maximum and measuring and recording the signal pressure output and current at selected increments of current and storing the data pairs in a first table.
How do you check a control valve stroke?
Control Valve Stroke Test Procedure
- Assume the valve is a 4-20mA operated pneumatic valve.
- Connect the universal calibrator (or source) to the input of the valve.

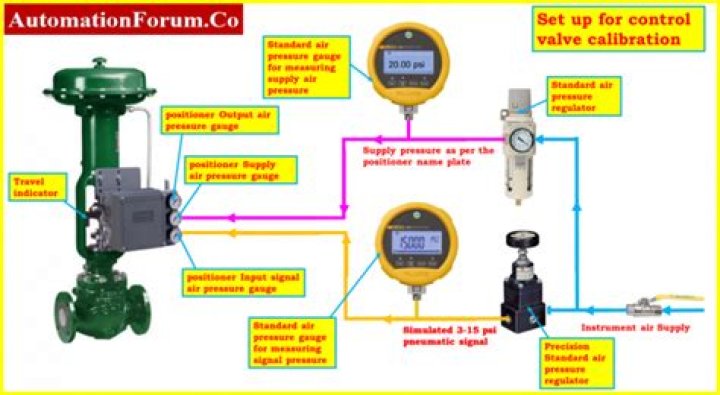

- Connect the multimeter at the valve position feedback output as shown in above the setup figure.
What is the working principle of control valve?
Control valves automatically regulate pressure and/or flow rate, and are available for any pressure. The valve modulates flow through movement of a valve plug in relation to the port(s) located within the valve body. The valve plug is attached to a valve stem, which, in turn, is connected to the actuator.
How do you check a control valve in a field?
Check the healthiness of I/P Converter, Position feedback transmitter, airlock relay, solenoid valve, and air supply pressure. Check the manual operation of the valve using the hand wheel. Stroke the valve either from local or from DCS as applicable. Confirm the valve travel from local.
How to calibrate a control valve positioner?
Calibration of control valve positioner is what we are going to discuss. to know more about control valve accessories check the link Control valve accessories Air supply to the positioner is 20 psi. To calibrate move the flapper assembly to midrange of direct side or about no.6
How can I calibrate my smart control valve?
Calibrate the Valve with the inbuilt option like “Auto Calibration” available in the valve positioner. Also, check the Limit switches function and adjust them as required. For the SMART Control Valve, we can use a HART communicator to calibrate the control valve.
How to do control valve calibration in SAP?
Confirm the signal status and remove all the simulation/forces, which were done before starting the job. Clear and return the work Permit to the Plant Shift Manager. Update the Work Order in SAP. Share your experience with us on the Calibration of Control Valves, use the comments section.
What do you need to know about safety valve calibration?
The 3 stages to observe during Safety Valve Calibration. set pressure – this is the pressure reading when the valve will pop or release a pressure rapidly. Tolerance is usually 3% of the set pressure. overpressure – This is pressure above-set pressure where the valve will open fully.
