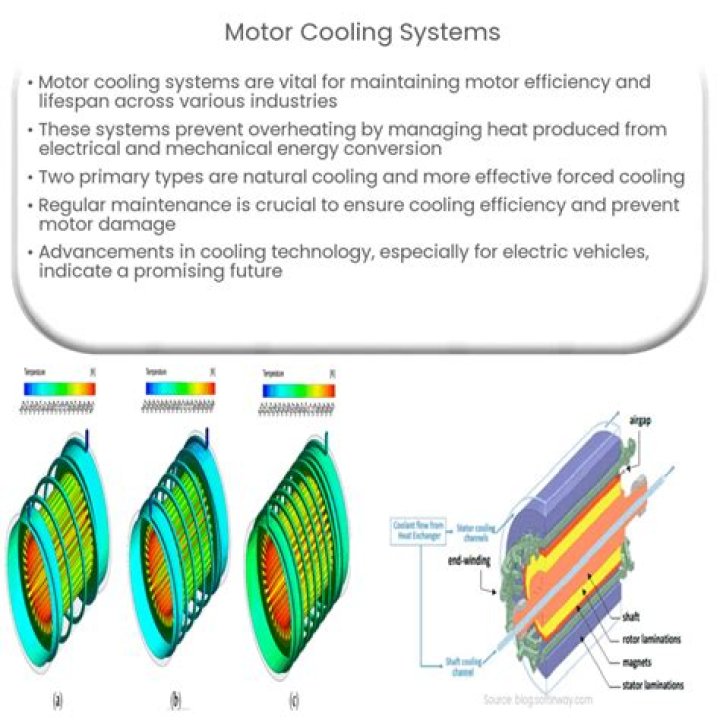

Does an electric motor need cooling?
All rotating electrical machines generate heat as a result of the electrical and mechanical losses inside the machine. Losses are high during starting or dynamic braking. Also, losses usually increase with increased loading. Cooling is necessary to continuously transfer the heat to a cooling medium, such as the air.
How do you cool down an electric motor?
Common Methods for Providing Cooling or Heat Dissipation in an Electric Motor
- In most cases, heat dissipation is achieved through conductive cooling.
- Another method to remove heat from electric motors is by providing forced air cooling.
- Liquid cooling can also be used to dissipate heat from an electric motor.
Does cold affect electric motors?
Every 10° C above the rated operating temperature will shorten the motor life by half. Running a motor in cold and freezing conditions raises additional concerns, and overheating remains a major risk. Overheating can occur if ventilated motor enclosures are covered in ice or snow.
Are electric motors supposed to get hot?
The surface temperature of a continuously (and correctly) operating general purpose industrial electric motor will easily be 80 C (176 F) and perhaps as high as 100 C (212 F). You can’t keep your hand on a surface that hot long enough to discern differences, and if you try, you could get a nasty burn.
Why does an electric motor overheat?
Electrical overload caused by excessive voltage supply or overwork by drawing more current will lead to overheating issues. As the motor works harder or under unusual load, heat will be the chief byproduct, leading to failure. 2. Low resistance is the most common reason behind electric motor failure.
What happens when electric motor overheats?
If the voltage is too high it will saturate the steel or cause the motor to run too fast, both of which can cause the motor to draw excess current and then overheat. Motors cool less efficiently at higher elevations due to the thinner air. If your motor is operating at a higher elevation—3300 ft.
Why is my electric motor getting hot?
The most common causes of overheating include: An unsuitable motor: Motors come in a range of sizes. The wrong voltage supply: Too many volts or too few volts can be damaging to a motor. When your motor doesn’t have the right voltage support, it needs to work harder to perform, which causes parts to overheat.
What is the most common cause of electric motor failure?
The most common cause of motor failure, and arguably the most difficult to overcome, is low resistance. Low resistance is caused by the degradation of the insulation of the windings due to conditions such as overheating, corrosion, or physical damage.
Can electric motors freeze?
Freezing temperatures can decrease the magnetization level of magnets in Permanent Magnet DC brush type motors. This can result in poor performance, especially during low voltage, high amp operation.
What happens if an electric motor overheats?
One of the most common performance issues in electric motors is overheating. Experts suggest that an 18°F (10°C) degree increase in motor winding temperature can directly affect the insulation of the component and reduce its lifespan by 50%.
What’s the best way to keep an electric motor cool?
Another common method for keeping electric motors cool is forced draught air cooling. Industrial motors often have an integral fan, mounted on the rear of the output shaft, so that it spins at the same rate as the driven load.
Why does heat need to be controlled by motor cooling?
Electric motor generated the heat from inductance process.So the temperature is important factor to ensure the electric motor can operated smoothly without any problem. Heat can effected the efficiency of motor,maximum load capacity,duty cycle and winding lifespan.That why heat from motor operation must be controlled by motor cooling.
How do you get heat out of an electric motor?
Another method to remove heat from electric motors is by providing forced air cooling. This is commonly done by providing an electric fan to blow air over the motor. Force air cooling can reduce the amount of heat transferred into the machine structure and allow…
How is the cooling of an AC motor done?
Cooling is necessary to continuously transfer the heat to a cooling medium, such as the air. The different methods of cooling rotating machines are classified in the standards IEC 34.6 and AS 1359.21. For AC induction motors, cooling air is usually circulated internally and externally by one or more fans mounted on the rotor shaft.
